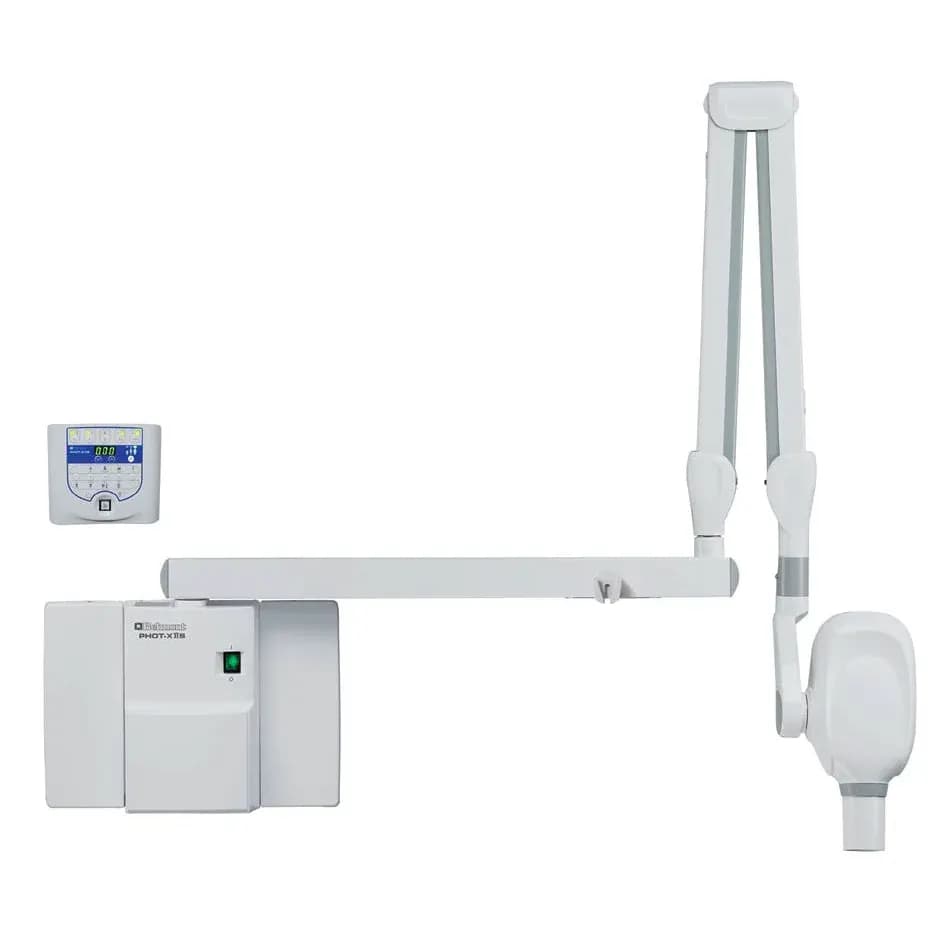

BELMONT PHOT-XiiS

From Borg Dental Supplies's catalogue

BELMONT PHOT-XiiS Zero-Drift Balance Arm Lightweight, ergonomically contoured X-Ray head is easily positioned for perfect positioning every time. Simple, Intuitive Controls and Operation Subcontrol allows operator to control all aspects with a simple touch. Radiation Dose may be viewed on the display with the press of a button. 36 exposure settings including Adult / Adolescent and Child presets with manual override functionality. Completely Customizable 60-70kVp Selectable Tube Potential, 3-6mA Selectable Tube Current, 4 Arm lengths to match X-ray reach requirements, Wall Mount, Cabinet Mount or Optional Pass-Thru Mount, Cone length options, Retrospective-fitting options and more make the Phot-X IIs the most flexible intra-oral X-ray in your office. Digital and Film Compatible Stick with your existing film workflow, or use the Phot-X IIs with BelSensor GOLD Digital Sensors to accelerate your practice into a Digital workflow. Specifications Selectable kV 60-70 kV Focal Spot 0.4 mm (IEC60336) Voltage 230V Rated Line Current 10A at 70kV, 6 mA Exposure Time 0.01 – 2.0 Seconds Min. Filtration in useful Beam 2.0 mm AI Equivalent at 70kV Selectable mA 3mA / 6mA Source to Skin Distance (SSD) Standard Cone: 8″ Optional Long Cone: 12″ Additional Options Pass-Thru Plate for 4×4 stud mounting Coiled wire remote switch Long 12″ Cone
