P53

SKU: 18891

From Armada Dental Corporation's catalogue

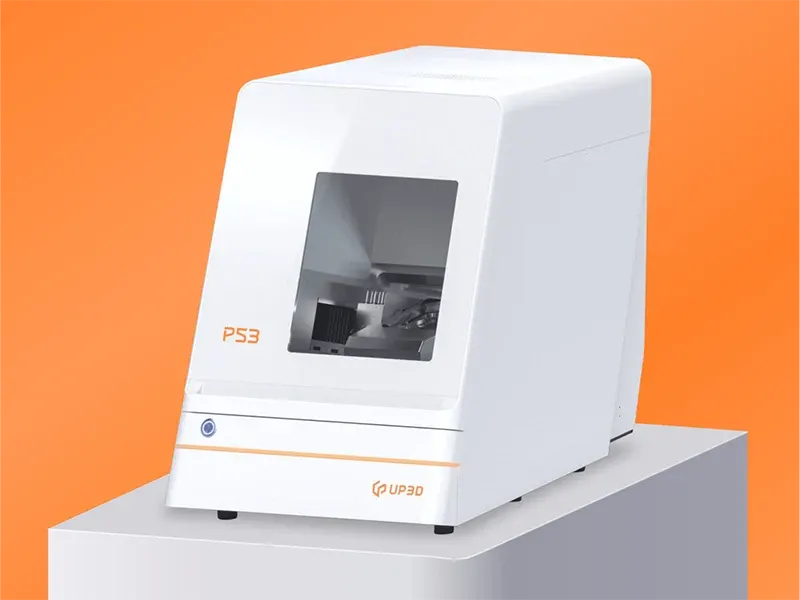

P53- Easier Smarter and More Effective Ways to Fit in with Your Lab Automation Automatic Calibration Automatic tool changer Automatic Calculation of tools lifetime LED Milling Progress. Display the milling progress of P53 can reduce personnel inspection time & improve efficiency Maximizing Your Efficiency- P53- 5-axis milling machine A 5-axis milling machine developed by UP3D, has intelligent features such as automatic calibration, monitoring of burs life, and automatic renewal, the P53 digitizes & scales up traditional processing methods. 90° Milling It is convenient for the embrasure processing of the anterior teeth, making the finished teeth closer to the designed teeth, and the shape is more nature and complete. Product Parameters UP3D 5-Axis Milling Machine Model- P53 Dimension- 718*443*628 (mm) Weight- 87kg Input Voltage- AC 200~240V 50~60Hz Maximum Power- 1.1KW Spindle Power- 0.35KW at max Axis Quantity- 5-Axis simultaneous motion Milling Range- X/Y/Z:167/206/104mm A:±30° B:±360° Milling Mode- Dry milling Max Rotation Speed- 30,000 rpm Max Feed Rate- 3000 mm/min Tools Quantity- 11 Tools Changing Method- Automatic> Spindle Cooling- Air cooling with compression air (Air pressure 0.25~0.35MPa) Milling Materials- Zirconia, Wax, PMMA, PEEK and soft materials Milling Time- Coping: Zirconia-10min Wax- 4.5min | Crown: Zirconia-13min Wax-5.5min Tools Diameter- 2 + 1 + 0.6 (Φ4 calibration bur) Disc Specification- Round disc with Φ98, 30mm max for thickness Spindle Cla
